Issues caught early
Fault detection, control logic analysis, analytics and Foresight work together, so developing problems show before they become breakdowns, complaints or wasted energy.
Apex Innovation Labs
Your building runs on control logic.We help you understand it.
Lower running costs and fewer faults start inside your building's controls. We read the control strategy, check each finding against the live BMS, and work with you to put it right.
Book a conversationScroll

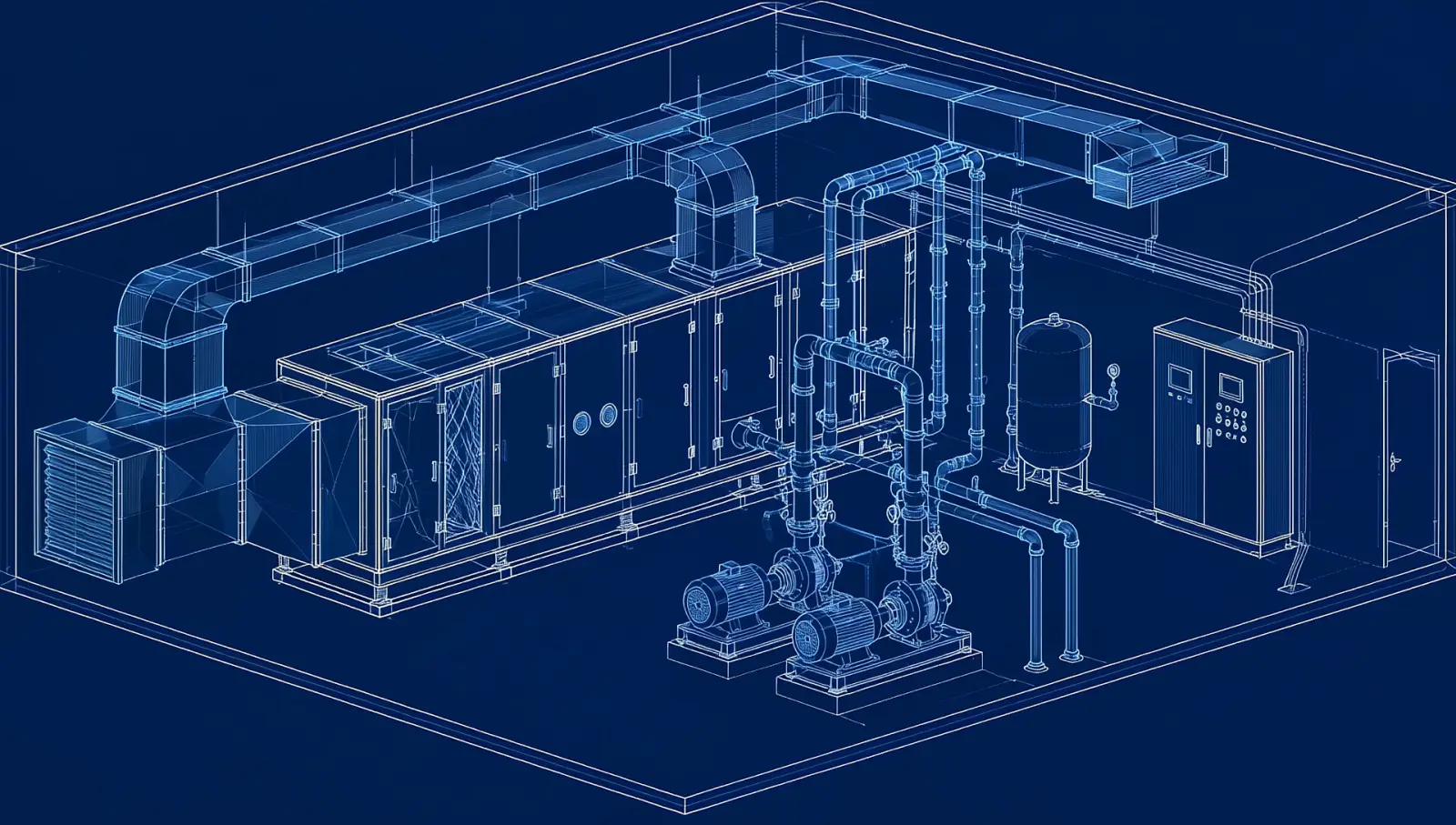

Behind the glass sits the plant.
Air handling, heating, pumps.
Every item of plant follows the controls.
Fans, valves and pumps, all to one strategy.
That is where we start.
Inside the strategy itself.
Inside the controller, ApexAnalytica reads the strategy live.
Ask Apex rates it and shows the evidence behind each finding.
Then it recommends improvements, referenced to ASHRAE Guideline 36 and CIBSE Guide H.
Organisation:Demo Estate Building:Demo Building Period:Last 30 Days
DUAHU_1 39 components
Ask Apex Live · 5s ago
AHU1_Scheduletrue
From: Schedules
AHU1_HOAAuto
From: Panel switch
FireAlarm_Oktrue
From: Common
DI04_FrostStatfalse
From: Digital_Inputs
DI06_SupFanProoftrue
From: Digital_Inputs
DI07_ExtFanProoftrue
From: Digital_Inputs
DI05_FilterDPfalse
From: Digital_Inputs
UI05_OutsideAir9.4 °C
From: Universal_Inputs
UI03_SpaceCO2629 ppm
From: Universal_Inputs
UI02_SpaceTemp21.5 °C
From: Universal_Inputs
UI01_SupAirTemp20.0 °C
From: Universal_Inputs
UI04_ExtAirTemp22.8 °C
From: Universal_Inputs
HandOffAuto
12 items
Schedule true1 CurrMode
HOA Autotrue Active
Safety_Interlocks
9 items
Fire truetrue SafetyOk
Frost ?slot missing
Fan_Proving
10 items · 30 s delay
Cmd truetrue Proven
Sup/Ext okfalse FanFail
AHU1_OutsideAir
NumericWritable
in109.4 °C
NumericIntervalHistoryExt
AHU1_SpaceCO2
NumericWritable
in10629 ppm
NumericIntervalHistoryExt
AHU1_SpaceTemp
NumericWritable
in1021.5 °C
NumericIntervalHistoryExt
AHU1_SupAirTemp
NumericWritable
in1020.0 °C
NumericIntervalHistoryExt
AHU1_FansEnable
BooleanWritable
in10true
NumericIntervalHistoryExt
AHU_CO2_Control
20 items
SpaceCO2 62960 FanSpeed
Enable true
AHU1_SATSetpoint
NumericWritable
fallback20.0 °C
NumericIntervalHistoryExt
Heat_Sequence
HR first, then heating · 14 items
Sp 20.0 Pv 20.0100 HR %
FrostOvr false32 Htg %
Damper_Control
6 items
Run truetrue Open
FrostOvr false
AHU1_Alarms
8 items
FilterDirty falsefalse General
FanFail false
AHU1_SupFanSpd
NumericWritable
in1060.0 %
NumericIntervalHistoryExt
AHU1_ExtFanSpd
NumericWritable
in1055.0 %
NumericIntervalHistoryExt
AHU1_HRWheel
NumericWritable
in10100.0 %
NumericIntervalHistoryExt
AHU1_HtgValve
NumericWritable
in1032.0 %
NumericIntervalHistoryExt
AHU1_Dampers
BooleanWritable
in10true
NumericIntervalHistoryExt
AHU1_GeneralAlarm
BooleanWritable · AlarmExt
in10false
NumericIntervalHistoryExt
DO1_SupFanEnabletrue
To: Digital_Outputs
DO2_ExtFanEnabletrue
To: Digital_Outputs
AO1_SupFanSpd60.0 %
To: Analog_Outputs
AO2_ExtFanSpd55.0 %
To: Analog_Outputs
AO5_HRWheel100.0 %
To: Analog_Outputs
AO3_HtgValve32.0 %
To: Analog_Outputs
AO4_CoolValve0.0 %
To: Analog_Outputs
DO3_Damperstrue
To: Digital_Outputs
Ask Apex
Control Logic Assistant
Analysing: AHU_1 · 39 blocks
Ask me about this control logic
Every answer shows what was read to reach it.
Give me a description of operation
Rate this control logic and highlight any issues
What safety interlocks are in place?
What energy efficiency improvements would you recommend?
Ask about this control logic...
Why Apex
Find issues before they become problems.
Most wasted energy, repeat faults and comfort complaints trace back to how the plant is controlled. We look at the controls, the plant and the meters together, so problems show early and repairs are quicker.
Why Apex
Find issues before they become problems.
Most wasted energy, repeat faults and comfort complaints trace back to how the plant is controlled. We look at the controls, the plant and the meters together, so problems show early and repairs are quicker.
Illustrative
02 / 06
Faster repairs
Ask Apex explains each finding with the evidence behind it. When a visit is needed, the engineer arrives already knowing what to fix.
Illustrative
03 / 06
Optimised plant sequences
Control strategies are rated against ASHRAE Guideline 36 and CIBSE guidance, with improvements such as supply air temperature reset and optimum start. What the existing controls can do now comes first, so hardware is bought only when it is needed.
Illustrative
04 / 06
Spikes spotted as they happen
Anomaly detection flags unusual energy use as the data arrives, not weeks later when the bill lands.
Illustrative
05 / 06
Savings you can evidence
Savings measured against a weather-normalised baseline following IPMVP, the international method for verifying energy savings, with carbon from stored grid intensity.
Illustrative
06 / 06
Bills you can trust
Supplier electricity invoices checked line by line against your own metered data.
How we do it.
- 01
Read
We connect to the building's controls and read the strategy, the meters and the plant data together.
- 02
Rate
Each item of plant is rated 0 to 5 against recognised standards, with the evidence shown.
- 03
Improve with what you have
Software changes the existing controls can make now, at no hardware cost.
- 04
Plan what to add
Sensors or equipment that would take the rating higher, listed and prioritised.
- 05
Deploy and verify
Changes applied on an engineer's approval, then checked against the live BMS.
Coming soon
Demand flexibility.
Demand flexibility rewards sites for reducing or shifting their electricity use for a short period when the grid is under strain. Because ApexAnalytica already reads every point in the control strategy, choosing which plant responds to an event, and by how much, becomes a configuration step rather than a new engineering project.
ApexAnalytica
One platform.The whole building.
Meters, plant and control logic are read together.
One set of data, not separate systems.
Energy, cost and carbon sit beside the plant.
So you can see what drives them.
One platform for how your buildings run.
Control logic and fault detection come first. Energy, reporting and verification sit alongside them, on one platform and one set of data.
Operations
Command Centre
Findings and alerts from every building, in one place.
Fault detection
Faults identified from how the plant is operating.
Control logic and Ask Apex
The strategy read live from the Niagara station or Trend controllers, explained in plain English.
Energy
Energy analytics
Half-hourly electricity, gas and water, with carbon from stored grid intensity.
Performance tracking
Cumulative deviation from expected use, so drift shows early.
Reports
Built to order, on demand or on a schedule.
Savings and revenue
Measurement and verification
Savings against a weather-normalised baseline, following IPMVP.
Energy generation
On-site generation read from the building's own meters.
Demand flexibility
Demand Flexibility Service events and their history. Automatic plant response is coming soon.
Invoice validation
Supplier electricity invoices re-checked line by line against metered data.
Building IQ
The building's record
The asset data for each building, held in one place.
01
Checked at the source
Findings are verified against the live BMS, not only stored data.
02
Evidence on every finding
The readings, links and logic behind it are shown alongside it.
03
Written for everyone who runs the building
Plain English for owners and FM teams, standard controls terms and point names for the engineers who act on it.
Master systems integration
Many systems.One building.
A building runs many systems.
BMS, lighting, access, CCTV, fire and lifts, often from different vendors.
We join them in one integration layer.
So they can be monitored and operated together.
Master systems integration
Bringing your building systems together.
One team is accountable for how your systems work together, so no problem falls between vendors. A modern commercial building runs many systems from many vendors, each with its own protocol and its own naming. As master systems integrator we bring them together, so the building can be monitored, analysed and operated as one.
- Single point of accountability
- One team responsible for the interfaces between systems, not only the systems themselves.
- Open protocols
- Integration over BACnet, OPC UA, REST APIs, SNMP and MQTT, including Google's UDMI message format.
- One data model
- Every point from every vendor described the same way using Google's Digital Buildings Ontology.
- BMS and metering connectivity
- Building automation over BACnet, Modbus and Niagara, and utility and sub-meter data alongside the plant it serves.
BMS installations

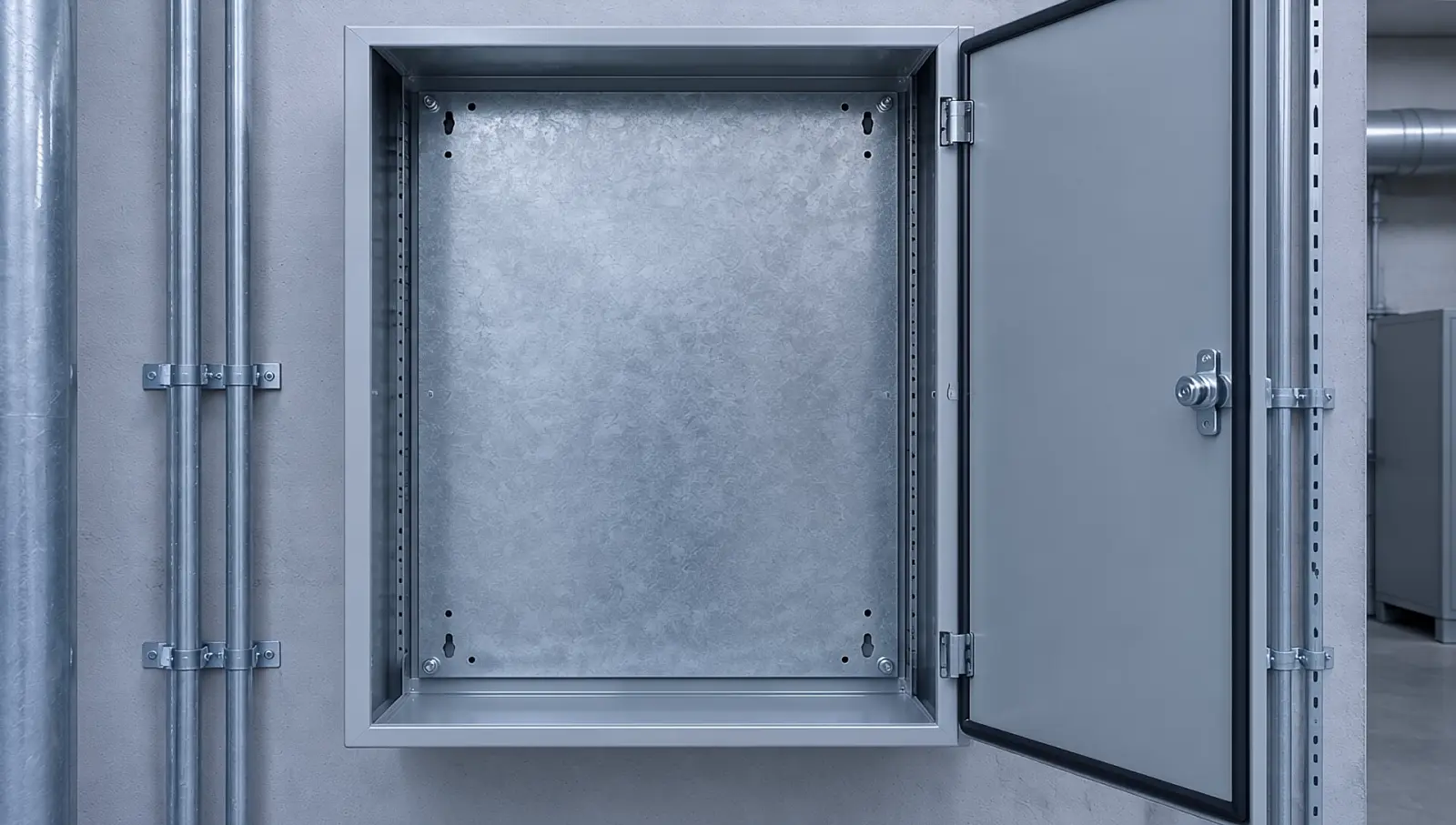

From an empty panelto a building under control.
Each panel is engineered to the control strategy.
Controllers, I/O and wiring.
Then it is programmed and commissioned.
And tested against the design intent.
BMS installations
Engineered, built and commissioned to the strategy.
Controls that do what the design intended from the day of handover. We deliver BMS projects from design through to handover, as building controls engineers.
- Design and engineering
- System architecture, control strategies and technical specifications.
- Control strategy development
- Control sequences written for energy efficiency and occupant comfort.
- Programming and graphics
- Custom programming and clear operator graphics, including Tridium Niagara and Trend Controls.
- Commissioning and validation
- Testing each sequence against its intent, so the system does what the design says it should.
BMS servicing
Service and maintenance for the systems you already run.
Servicing that keeps the controls running as they should, not only the panels clean. We service and maintain building management systems across the major controls platforms.
- Panels
- Control panels inspected and cleaned.
- Software
- Control software reviewed and optimised.
- Backups
- Backups taken of the control software.
- Inputs and outputs
- Every input and output checked, so the BMS reads what the plant is doing.
- Checked in ApexAnalytica
- The results checked in ApexAnalytica after the visit.
- Savings
- Savings shown where they can be measured.
- Trend01
- Tridium02
- Schneider03
- Siemens04
- Delta05
Smart buildings consultancy
A clear specification.A building delivered to it.
We help you plan, specify and set the standards.
Drawing on experience of delivering the work.
Then we oversee delivery.
So what is specified is what gets built.
Smart buildings consultancy
From specification to a building that works.
Vendors bid against one clear specification, so what you pay for is what gets built. Independent advice from engineers who have led BMS teams and delivered projects.
- BMS strategy and planning
- What to keep, what to upgrade and in which order, based on what is installed on site.
- Energy consultancy
- Understanding where energy goes and which changes will make a measurable difference.
- Compliance and standards
- Working to ASHRAE Guideline 36, CIBSE guidance and the standards your buildings are held to.
- Performance optimisation
- Tuning based on how the building performs in operation.
Understand how your building is performing.
Talk to us about a single site, a portfolio or a specific problem you would like resolved.
